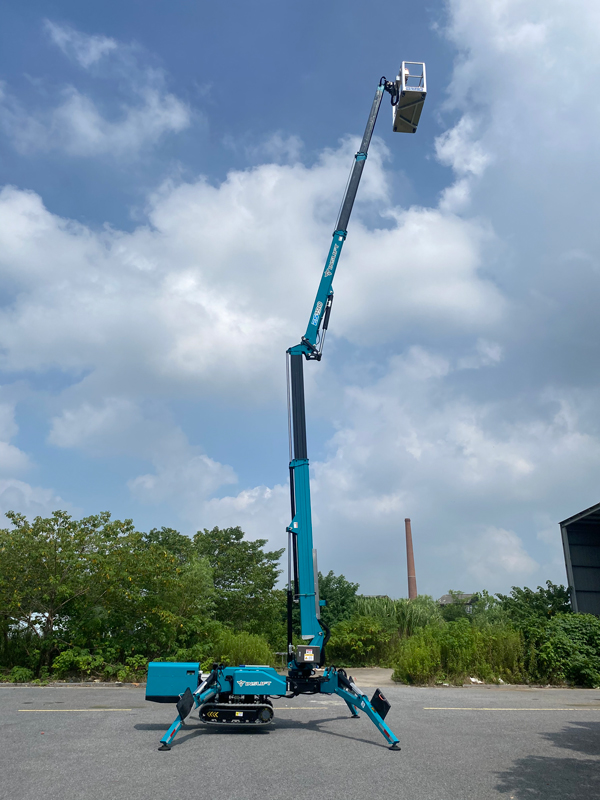

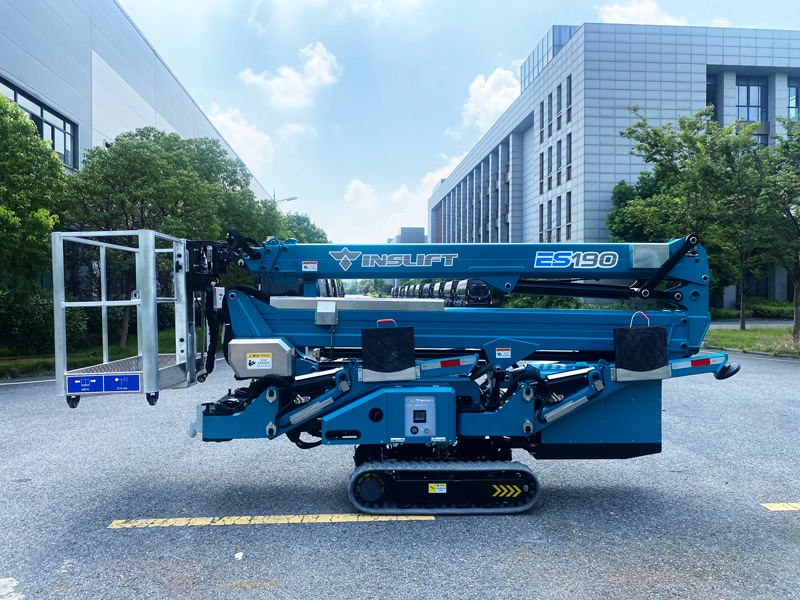

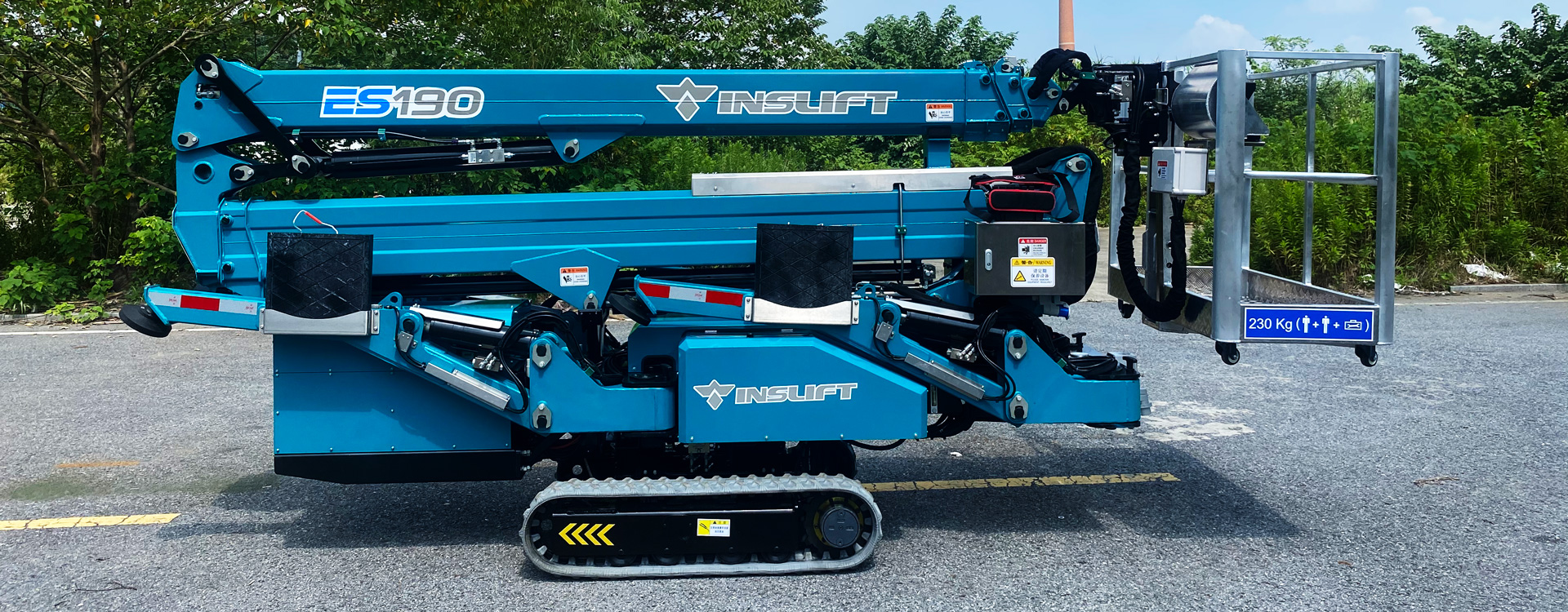

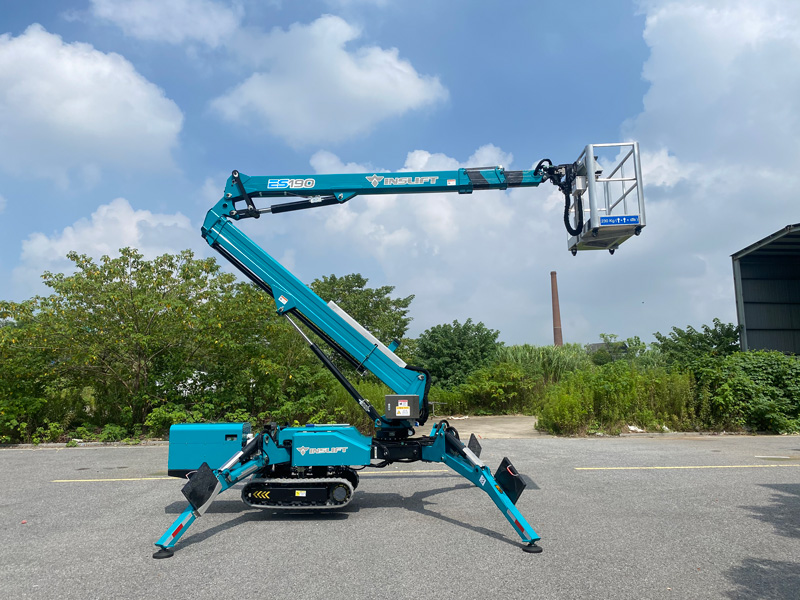

The ES190 Spider Lift integrates an advanced CAN-BUS control system and a fully proportional valve control system to meet multiple operational requirements. Its unique feature is the introduction of go home function and one-button outrigger leveling, which makes the user's operation more convenient and efficient. The maximum horizontal outreach of the lift reaches 11 meters, which is outstanding among similar products in the world, providing a wider reach for operations.

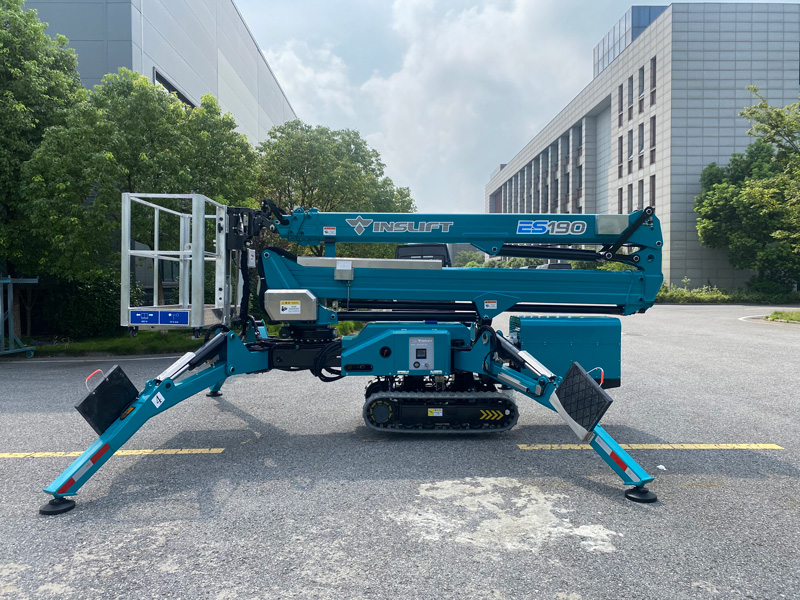

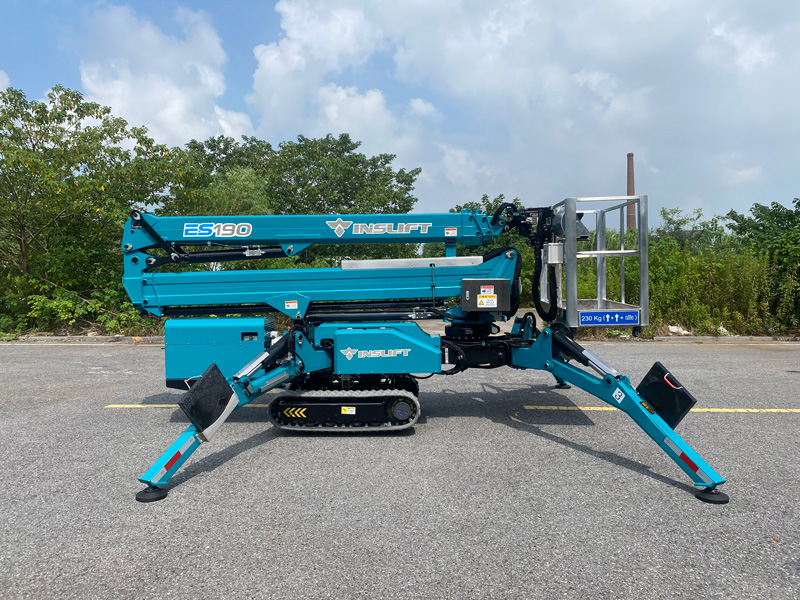

In addition, the ES190 is designed with variable outrigger system and track width adjusting system, providing users with smooth driving experience and flexible access to tight spaces, thus optimizing the space used by the machine to the greatest extent possible. Its powerful powertrain is powered by a Kubota engine, ensuring that the lift gets the power it needs. All in all, the ES190 Spider Lift provides users with an excellent machine operating experience with its outstanding performance and elaborate design.
|
Model |
ES190 |
|
Working height, max. |
18.8 m |
|
Platform height, max. |
16.8 m |
|
Horizontal outreach, max. |
11 m |
|
Up and over clearance, max. |
8.5 m |
|
Platform capacity, max. |
230kg |
|
Platform rotatable |
±80° |
|
Platform measurements（L*W*H） |
1.5m * 0.7m * 1.1m |
|
Turntable rotation, max. |
360°（continuous） |
|
Outrigger footprint |
Variable outrigger system |
|
Track width-adjustable |
900 mm / 1150 mm |
|
Gradeability |
30% |
|
Control |
Radio remote control |
|
Track |
Non-marking rubber tracks |
|
Drive speed |
0—1.3km/h |
|
Standard power |
Diesel engine + AC220V Electric motor |
|
Combustion engine (Diesel) |
Kubota D902 |
|
Wind |
12.5m/s |
|
Total weight |
3150 kg |
|
Overall dimensions without platform (L*W*H) |
4520 mm * 900 mm * 1980 mm |
ES190-EN
